Understanding Different Types of Healds
What is a Zwai heald?
ZWAI : flat healds having two eyes at the centre of the heald body on either side of the centre line. This design is optimized for handling complex weaving patterns and is suitable for heavy and medium-density fabrics. This two-eye configuration allows for better distribution of warp tension over the product lifetime and making them ideal for intricate and high-performance weaving tasks.
What does Zwai Star mean?
Zwai Star healds are an advanced version of Zwai healds. They also have two eyes, but with the lower eye positioned in the centre of the heald. This unique configuration enhances the heald’s stability and precision in high-density weaving applications, making it suitable for producing intricate and high-quality fabric patterns.
What does Uno mean?
Uno healds are single-eye healds, designed for simplicity and ease of use. The single eye is typically located in the centre of the heald, providing straightforward threading and consistent warp tension. Uno healds are suitable for basic weaving patterns and are commonly used in looms handling lightweight to medium-weight fabrics.
Flat Heald
Product 1
Code: 1O-33H-U
Length: 330 mm

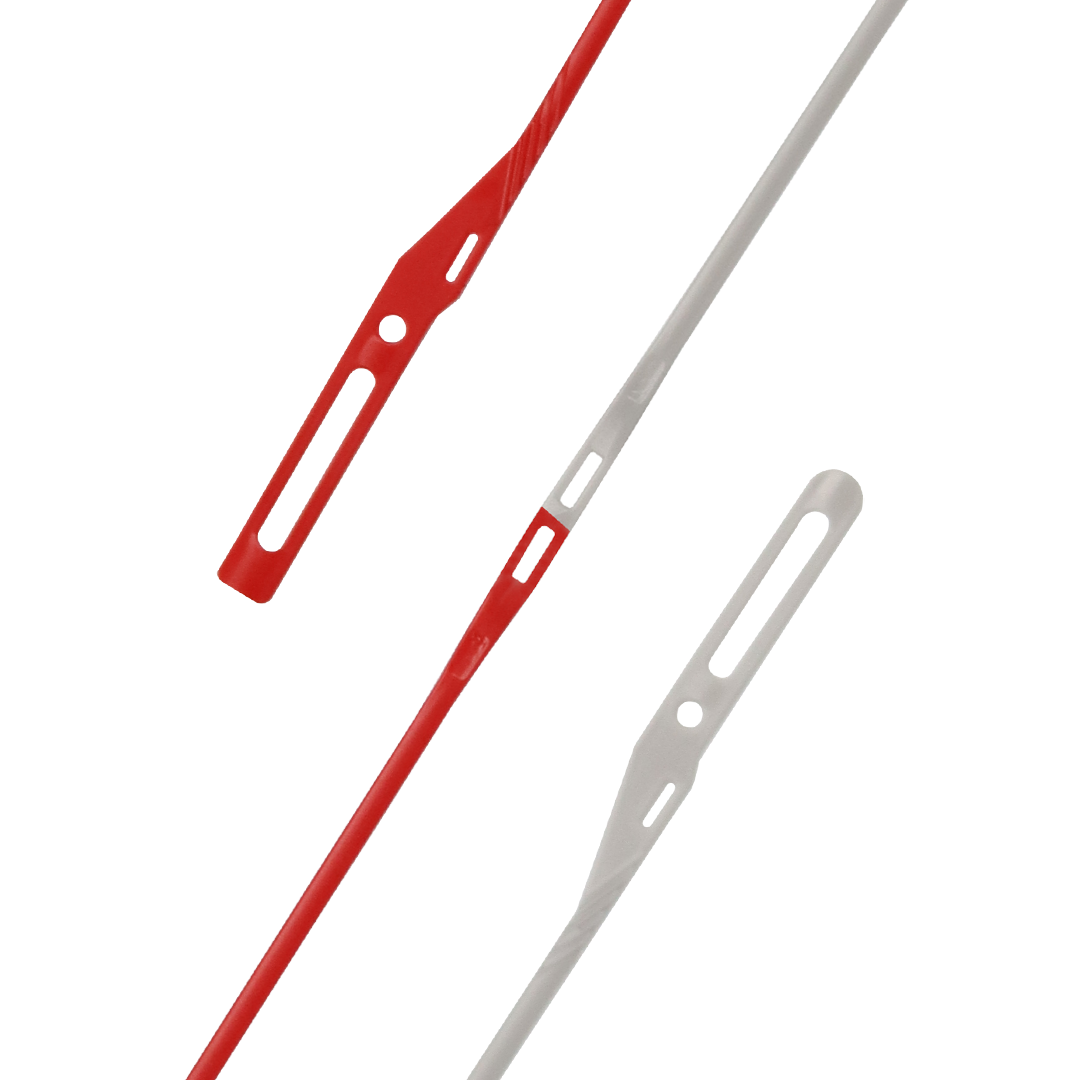

Type: O (Open-ended flat heald)
Number of Eyes: 1
Density: Heavy
Eye Location: Centre
Description: This Uno heald is designed for heavy fabric weaving. It is 330 mm in length, has a single eye located at the center, and provides stability and durability for consistent weaving performance. Suitable for basic loom setups handling heavy fabrics.
Product 1
Code: 1O-33H-U
Length: 330 mm
Type: O (Open-ended flat heald)
Number of Eyes: 1
Density: Heavy
Eye Location: Centre
Description: This Uno heald is designed for heavy fabric weaving. It is 330 mm in length, has a single eye located at the center, and provides stability and durability for consistent weaving performance. Suitable for basic loom setups handling heavy fabrics.
Product 1
Code: 1O-33H-U
Length: 330 mm
Type: O (Open-ended flat heald)
Number of Eyes: 1
Density: Heavy
Eye Location: Centre
Description: This Uno heald is designed for heavy fabric weaving. It is 330 mm in length, has a single eye located at the center, and provides stability and durability for consistent weaving performance. Suitable for basic loom setups handling heavy fabrics.
Product 1
Code: 1O-33H-U
Length: 330 mm
Type: O (Open-ended flat heald)
Number of Eyes: 1
Density: Heavy
Eye Location: Centre
Description: This Uno heald is designed for heavy fabric weaving. It is 330 mm in length, has a single eye located at the center, and provides stability and durability for consistent weaving performance. Suitable for basic loom setups handling heavy fabrics.
Code: 1O-33H-U
Length: 330 mm
Type: O (Open-ended flat heald)
Number of Eyes: 1
Density: Heavy
Eye Location: Centre
Description: This Uno heald is designed for heavy fabric weaving. It is 330 mm in length, has a single eye located at the center, and provides stability and durability for consistent weaving performance. Suitable for basic loom setups handling heavy fabrics.
Product 2
Code: 1O-28H-U
Length: 280 mm
Type: O (Open-ended flat heald)
Number of Eyes: 1
Density: Heavy
Eye Location: Centre
Description: This Uno heald is 280 mm in length, with a single center eye, ideal for weaving heavy fabrics. Its sturdy construction ensures reliable performance in basic loom setups.
Code: 1O-28H-U
Length: 280 mm
Type: O (Open-ended flat heald)
Number of Eyes: 1
Density: Heavy
Eye Location: Centre
Description: This Uno heald is 280 mm in length, with a single center eye, ideal for weaving heavy fabrics. Its sturdy construction ensures reliable performance in basic loom setups.
Product 3
Code: 2O-33H-Z
Length: 330 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: On either side of the centre line
Description: This Zwai heald, 330 mm in length with two eyes placed on either side of the center line, is perfect for heavy-duty weaving. It offers enhanced durability and is suitable for complex weaving patterns, ensuring even distribution of warp tension.
Code: 2O-33H-Z
Length: 330 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: On either side of the centre line
Description: This Zwai heald, 330 mm in length with two eyes placed on either side of the center line, is perfect for heavy-duty weaving. It offers enhanced durability and is suitable for complex weaving patterns, ensuring even distribution of warp tension.
Product 4
Code: 2C-33H-Z
Length: 330 mm

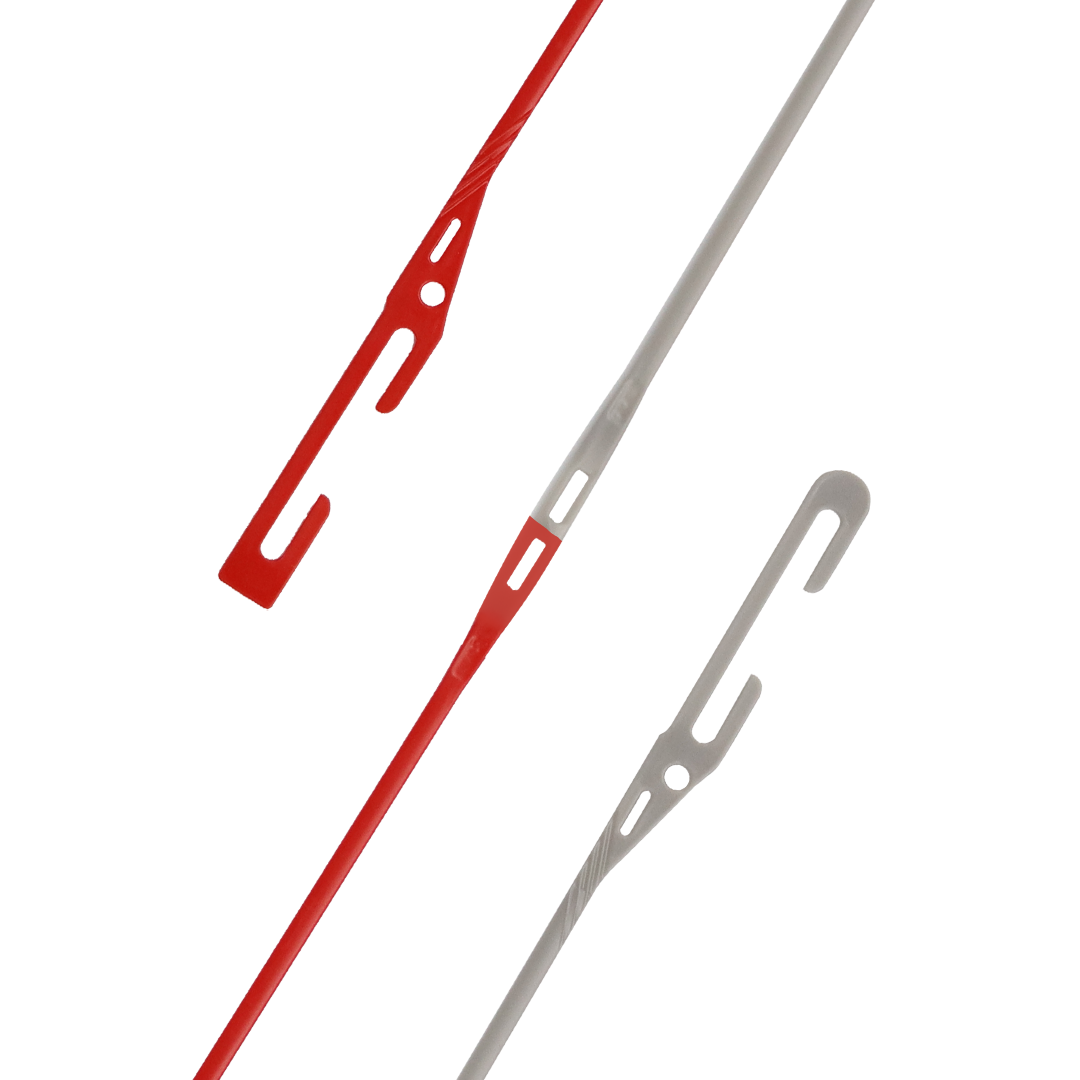

Type: C (Closed-ended flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: On either side of the centre line
Description: This 330 mm Zwai heald with two eyes on either side of the center line is a closed-ended type. It is built for heavy fabric weaving, providing excellent stability and support.
Code: 2C-33H-Z
Length: 330 mm
Type: C (Closed-ended flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: On either side of the centre line
Description: This 330 mm Zwai heald with two eyes on either side of the center line is a closed-ended type. It is built for heavy fabric weaving, providing excellent stability and support.
Product 5
Code: 2O-26M-Z
Length: 260 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Medium
Eye Location: On either side of the centre line
Description: This medium-density Zwai heald is 260 mm in length, featuring two eyes on either side of the center line. It is ideal for medium-weight fabrics, providing a balance between flexibility and strength.
Code: 2O-26M-Z
Length: 260 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Medium
Eye Location: On either side of the centre line
Description: This medium-density Zwai heald is 260 mm in length, featuring two eyes on either side of the center line. It is ideal for medium-weight fabrics, providing a balance between flexibility and strength.
Product 6
Code: 1O-26H-U
Length: 260 mm
Type: O (Open-ended flat heald)
Number of Eyes: 1
Density: Heavy
Eye Location: Centre
Description: This Uno heald, with a length of 260 mm and a single center eye, is designed for heavy fabric weaving. Its robust construction ensures stability and reliability in basic loom setups.
Code: 1O-26H-U
Length: 260 mm
Type: O (Open-ended flat heald)
Number of Eyes: 1
Density: Heavy
Eye Location: Centre
Description: This Uno heald, with a length of 260 mm and a single center eye, is designed for heavy fabric weaving. Its robust construction ensures stability and reliability in basic loom setups.
Product 7

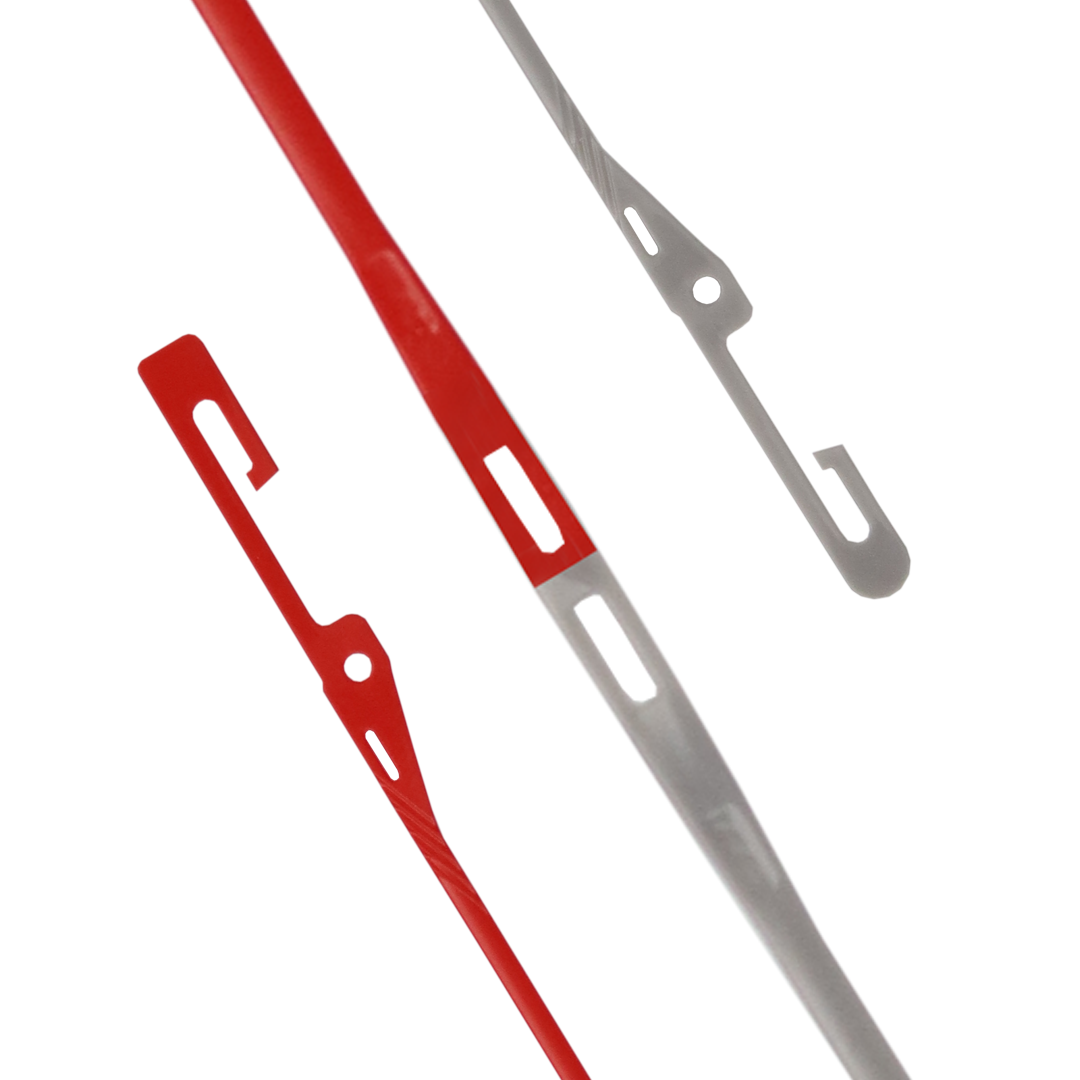

Code: 2J-33H-Z
Length: 330 mm
Type: J (Special flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: On either side of the centre line
Description: This Zwai heald, 330 mm in length with two eyes on either side of the center line, is of the special J type. It is built for heavy fabric weaving, offering excellent performance for complex patterns.
Code: 2J-33H-Z
Length: 330 mm
Type: J (Special flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: On either side of the centre line
Description: This Zwai heald, 330 mm in length with two eyes on either side of the center line, is of the special J type. It is built for heavy fabric weaving, offering excellent performance for complex patterns.
Product 8
Code: 2O-33M-Z
Length: 330 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Medium
Eye Location: On either side of the centre line
Description: This 330 mm Zwai heald with two eyes on either side of the center line is designed for medium-weight fabrics. Its open-ended design ensures flexibility and consistent weaving performance.
Code: 2O-33M-Z
Length: 330 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Medium
Eye Location: On either side of the centre line
Description: This 330 mm Zwai heald with two eyes on either side of the center line is designed for medium-weight fabrics. Its open-ended design ensures flexibility and consistent weaving performance.
Product 9
Code: 2O-28H-Z
Length: 280 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: On either side of the centre line
Description: This Zwai heald is 280 mm in length, with two eyes on either side of the center line. It is suitable for heavy fabric weaving, offering stability and durability for intricate patterns.
Code: 2O-28H-Z
Length: 280 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: On either side of the centre line
Description: This Zwai heald is 280 mm in length, with two eyes on either side of the center line. It is suitable for heavy fabric weaving, offering stability and durability for intricate patterns.
Product 10
Code: 1C-28H-U
Length: 280 mm
Type: C (Closed-ended flat heald)
Number of Eyes: 1
Density: Heavy
Eye Location: Centre
Description: This 280 mm Uno heald with a single center eye is of the closed-ended type. It is built for heavy fabric weaving, ensuring reliable performance and stability.
Code: 1C-28H-U
Length: 280 mm
Type: C (Closed-ended flat heald)
Number of Eyes: 1
Density: Heavy
Eye Location: Centre
Description: This 280 mm Uno heald with a single center eye is of the closed-ended type. It is built for heavy fabric weaving, ensuring reliable performance and stability.
Product 11
Code: 2C-28H-ZS
Length: 280 mm
Type: C (Closed-ended flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: Lower eye in centre
Description: This Zwai Star heald is 280 mm in length with two lower eyes in the center. It is designed for heavy fabric weaving, providing enhanced durability and precise weaving performance.
Code: 2C-28H-ZS
Length: 280 mm
Type: C (Closed-ended flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: Lower eye in centre
Description: This Zwai Star heald is 280 mm in length with two lower eyes in the center. It is designed for heavy fabric weaving, providing enhanced durability and precise weaving performance.
Product 12
Code: 2O-28H-ZS
Length: 280 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: Lower eye in centre
Description: This 280 mm Zwai Star heald with two lower eyes in the center is of the open-ended type. It is built for heavy fabric weaving, providing enhanced durability and precise weaving performance.
Code: 2O-28H-ZS
Length: 280 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: Lower eye in centre
Description: This 280 mm Zwai Star heald with two lower eyes in the center is of the open-ended type. It is built for heavy fabric weaving, providing enhanced durability and precise weaving performance.
Product 13
Code: 2O-33M-ZS
Length: 330 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Medium
Eye Location: Lower eye in centre
Description: This medium-density Zwai Star heald is 330 mm in length with two lower eyes in the center. It is designed for medium-weight fabrics, offering a balance between flexibility and strength.
Code: 2O-33M-ZS
Length: 330 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Medium
Eye Location: Lower eye in centre
Description: This medium-density Zwai Star heald is 330 mm in length with two lower eyes in the center. It is designed for medium-weight fabrics, offering a balance between flexibility and strength.
Product 14
Code: 2O-26M-ZS
Length: 260 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Medium
Eye Location: Lower eye in centre
Description: This medium-density Zwai Star heald is 260 mm in length with two lower eyes in the center. It is suitable for medium-weight fabrics, providing a balance between flexibility and durability.
Code: 2O-26M-ZS
Length: 260 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Medium
Eye Location: Lower eye in centre
Description: This medium-density Zwai Star heald is 260 mm in length with two lower eyes in the center. It is suitable for medium-weight fabrics, providing a balance between flexibility and durability.
Product 15
Code: 2O-33H-ZS
Length: 330 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: Lower eye in centre
Description: This heavy-density Zwai Star heald is 330 mm in length with two lower eyes in the center. It is designed for heavy-weight fabrics, offering durability and precision in weaving complex patterns.
Code: 2O-33H-ZS
Length: 330 mm
Type: O (Open-ended flat heald)
Number of Eyes: 2
Density: Heavy
Eye Location: Lower eye in centre
Description: This heavy-density Zwai Star heald is 330 mm in length with two lower eyes in the center. It is designed for heavy-weight fabrics, offering durability and precision in weaving complex patterns.

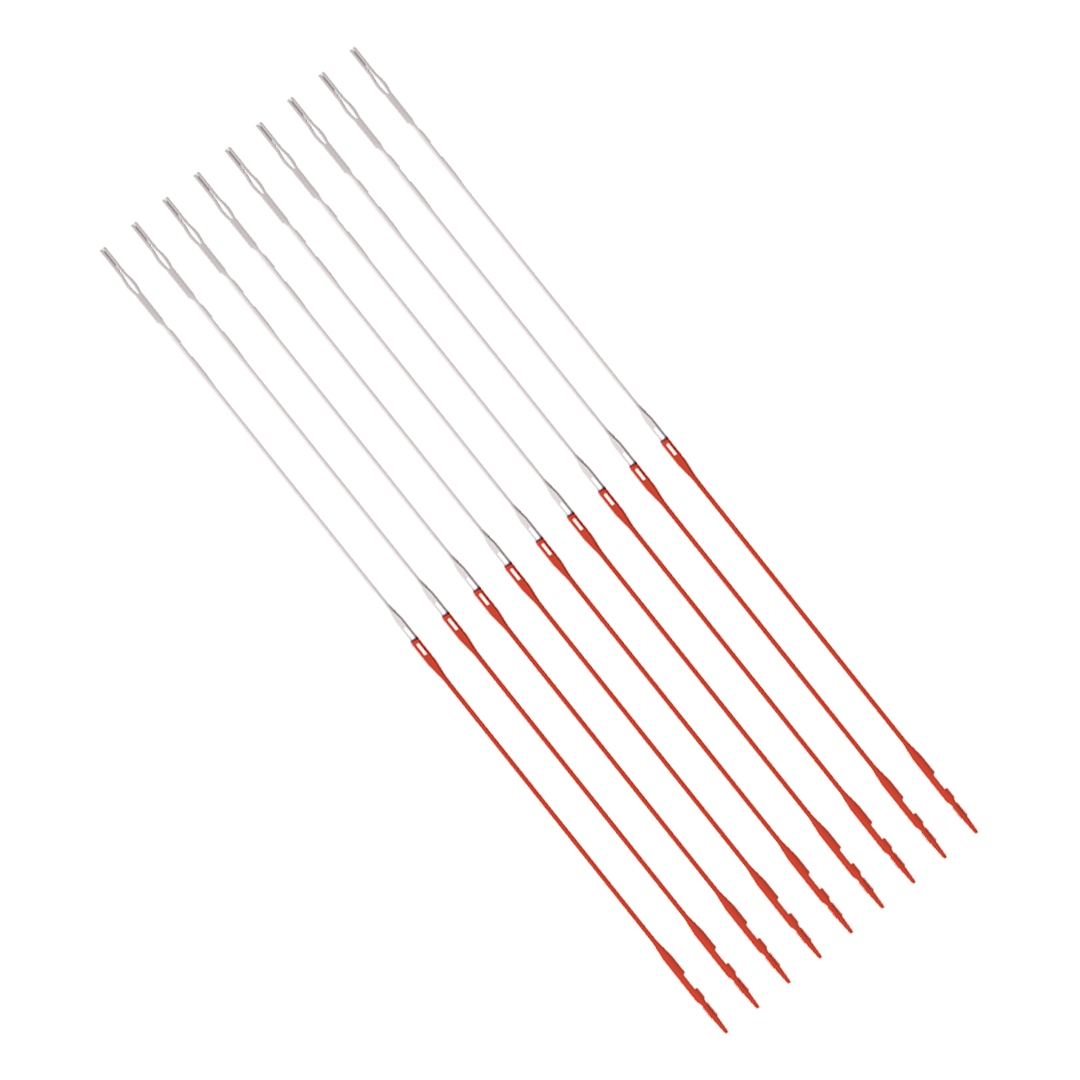

Wire Heald
Product 1
Code: D-117-108-380
Thickness: 1.17 mm
Eye Distance: 1.08 mm
Number of Eyes: 2
Length: 380 mm
Description: This wire heald is part of our Duos series, featuring a 1.17 mm thickness and dual eyes spaced 1.08 mm apart. Ideal for medium-density weaving, this 380 mm long heald is designed to provide consistent tension and durability. Suitable for weaving delicate and fine fabrics.
Code: D-117-108-380
Thickness: 1.17 mm
Eye Distance: 1.08 mm
Number of Eyes: 2
Length: 380 mm
Description: This wire heald is part of our Duos series, featuring a 1.17 mm thickness and dual eyes spaced 1.08 mm apart. Ideal for medium-density weaving, this 380 mm long heald is designed to provide consistent tension and durability. Suitable for weaving delicate and fine fabrics.
Product 2
Code: D-117-144-380
Thickness: 1.17 mm
Eye Distance: 1.44 mm
Number of Eyes: 2
Length: 380 mm
Description: This Duos wire heald offers a 1.17 mm thickness with eyes spaced at 1.44 mm, perfect for weaving a wide range of fabrics. The 380 mm length and dual-eye design ensure smooth yarn guidance, contributing to high-quality fabric production.
Code: D-117-144-380
Thickness: 1.17 mm
Eye Distance: 1.44 mm
Number of Eyes: 2
Length: 380 mm
Description: This Duos wire heald offers a 1.17 mm thickness with eyes spaced at 1.44 mm, perfect for weaving a wide range of fabrics. The 380 mm length and dual-eye design ensure smooth yarn guidance, contributing to high-quality fabric production.
Product 3
Code: D-117-180-380
Thickness: 1.17 mm
Eye Distance: 1.80 mm
Number of Eyes: 2
Length: 380 mm
Description: The 1.17 mm thick Duos wire heald with a 1.80 mm eye distance is crafted for weavers looking for precision and reliability. Its 380 mm length is optimal for medium to fine fabric weaving, offering exceptional control and reduced yarn breakage.
Code: D-117-180-380
Thickness: 1.17 mm
Eye Distance: 1.80 mm
Number of Eyes: 2
Length: 380 mm
Description: The 1.17 mm thick Duos wire heald with a 1.80 mm eye distance is crafted for weavers looking for precision and reliability. Its 380 mm length is optimal for medium to fine fabric weaving, offering exceptional control and reduced yarn breakage.
Product 4
Code: D-117-225-380
Thickness: 1.17 mm
Eye Distance: 2.25 mm
Number of Eyes: 2
Length: 380 mm
Description: This Duos wire heald, with a 1.17 mm thickness and wider eye distance of 2.25 mm, is designed for intricate weaving patterns requiring precise yarn handling. The 380 mm length enhances stability and weaving efficiency, making it suitable for complex designs.
Code: D-117-225-380
Thickness: 1.17 mm
Eye Distance: 2.25 mm
Number of Eyes: 2
Length: 380 mm
Description: This Duos wire heald, with a 1.17 mm thickness and wider eye distance of 2.25 mm, is designed for intricate weaving patterns requiring precise yarn handling. The 380 mm length enhances stability and weaving efficiency, making it suitable for complex designs.
Product 5
Code: D-135-108-380
Thickness: 1.35 mm
Eye Distance: 1.08 mm
Number of Eyes: 2
Length: 380 mm
Description: Featuring a thicker 1.35 mm build, this Duos wire heald is perfect for high-density weaving operations. The 1.08 mm eye distance allows for precise yarn placement, while the 380 mm length ensures durability and minimal wear during intense weaving processes.
Code: D-135-108-380
Thickness: 1.35 mm
Eye Distance: 1.08 mm
Number of Eyes: 2
Length: 380 mm
Description: Featuring a thicker 1.35 mm build, this Duos wire heald is perfect for high-density weaving operations. The 1.08 mm eye distance allows for precise yarn placement, while the 380 mm length ensures durability and minimal wear during intense weaving processes.
Product 6
Code: D-135-144-380
Thickness: 1.35 mm
Eye Distance: 1.44 mm
Number of Eyes: 2
Length: 380 mm
Description: This Duos wire heald is tailored for weavers working with thicker yarns or denser fabrics. With a 1.35 mm thickness and 1.44 mm eye distance, it offers excellent yarn management over a 380 mm length, suitable for heavy-duty weaving applications.
Code: D-135-144-380
Thickness: 1.35 mm
Eye Distance: 1.44 mm
Number of Eyes: 2
Length: 380 mm
Description: This Duos wire heald is tailored for weavers working with thicker yarns or denser fabrics. With a 1.35 mm thickness and 1.44 mm eye distance, it offers excellent yarn management over a 380 mm length, suitable for heavy-duty weaving applications.
Product 7
Code: D-135-180-380
Thickness: 1.35 mm
Eye Distance: 1.80 mm
Number of Eyes: 2
Length: 380 mm
Description: This robust Duos wire heald is built for demanding weaving conditions. The 1.35 mm thickness combined with a 1.80 mm eye distance provides strong support for thicker yarns, ensuring consistent fabric quality in high-density weaving tasks.
Code: D-135-180-380
Thickness: 1.35 mm
Eye Distance: 1.80 mm
Number of Eyes: 2
Length: 380 mm
Description: This robust Duos wire heald is built for demanding weaving conditions. The 1.35 mm thickness combined with a 1.80 mm eye distance provides strong support for thicker yarns, ensuring consistent fabric quality in high-density weaving tasks.
Product 8
Code: D-135-225-380
Thickness: 1.35 mm
Eye Distance: 2.25 mm
Number of Eyes: 2
Length: 380 mm
Description: Designed for versatility, this Duos wire heald with a 1.35 mm thickness and 2.25 mm eye distance is suitable for various weaving patterns. Its 380 mm length ensures smooth and reliable performance in complex weaving setups.
Code: D-135-225-380
Thickness: 1.35 mm
Eye Distance: 2.25 mm
Number of Eyes: 2
Length: 380 mm
Description: Designed for versatility, this Duos wire heald with a 1.35 mm thickness and 2.25 mm eye distance is suitable for various weaving patterns. Its 380 mm length ensures smooth and reliable performance in complex weaving setups.
Product 9
Code: D-153-108-380
Thickness: 1.53 mm
Eye Distance: 1.08 mm
Number of Eyes: 2
Length: 380 mm
Description: The thickest in our Duos series, this 1.53 mm wire heald with a 1.08 mm eye distance is designed for heavy-duty weaving operations. The 380 mm length provides maximum durability, making it ideal for industrial-scale weaving with high-tension yarns.
Code: D-153-108-380
Thickness: 1.53 mm
Eye Distance: 1.08 mm
Number of Eyes: 2
Length: 380 mm
Description: The thickest in our Duos series, this 1.53 mm wire heald with a 1.08 mm eye distance is designed for heavy-duty weaving operations. The 380 mm length provides maximum durability, making it ideal for industrial-scale weaving with high-tension yarns.
Product 10
Code: D-153-144-380
Thickness: 1.53 mm
Eye Distance: 1.44 mm
Number of Eyes: 2
Length: 380 mm
Description: This 1.53 mm thick Duos wire heald is engineered for weaving projects requiring extra strength and durability. The 1.44 mm eye distance is optimal for maintaining yarn integrity, while the 380 mm length offers robust performance in demanding conditions.
Code: D-153-144-380
Thickness: 1.53 mm
Eye Distance: 1.44 mm
Number of Eyes: 2
Length: 380 mm
Description: This 1.53 mm thick Duos wire heald is engineered for weaving projects requiring extra strength and durability. The 1.44 mm eye distance is optimal for maintaining yarn integrity, while the 380 mm length offers robust performance in demanding conditions.
Product 11
Code: D-153-180-380
Thickness: 1.53 mm
Eye Distance: 1.80 mm
Number of Eyes: 2
Length: 380 mm
Description: Built for the toughest weaving tasks, this 1.53 mm Duos wire heald with a 1.80 mm eye distance ensures excellent yarn control. Its 380 mm length and thick construction provide durability and reliability for heavy-duty fabric production.
Code: D-153-180-380
Thickness: 1.53 mm
Eye Distance: 1.80 mm
Number of Eyes: 2
Length: 380 mm
Description: Built for the toughest weaving tasks, this 1.53 mm Duos wire heald with a 1.80 mm eye distance ensures excellent yarn control. Its 380 mm length and thick construction provide durability and reliability for heavy-duty fabric production.
Product 12
Code: D-153-225-380
Thickness: 1.53 mm
Eye Distance: 2.25 mm
Number of Eyes: 2
Length: 380 mm
Description: This Duos wire heald offers maximum strength with a 1.53 mm thickness and 2.25 mm eye distance, perfect for intricate weaving patterns. Its 380 mm length ensures long-lasting performance even in the most challenging weaving environments.
Code: D-153-225-380
Thickness: 1.53 mm
Eye Distance: 2.25 mm
Number of Eyes: 2
Length: 380 mm
Description: This Duos wire heald offers maximum strength with a 1.53 mm thickness and 2.25 mm eye distance, perfect for intricate weaving patterns. Its 380 mm length ensures long-lasting performance even in the most challenging weaving environments.
Product 13
Code: E-117-NA-380
Thickness: 1.17 mm
Eye Distance: NA
Number of Eyes: 1
Length: 380 mm
Description: Part of the Eins series, this wire heald with a 1.17 mm thickness and single eye is designed for precision weaving. The 380 mm length and short eye reinforcement provide enhanced control and durability, ideal for weaving delicate or intricate patterns.
Code: E-117-NA-380
Thickness: 1.17 mm
Eye Distance: NA
Number of Eyes: 1
Length: 380 mm
Description: Part of the Eins series, this wire heald with a 1.17 mm thickness and single eye is designed for precision weaving. The 380 mm length and short eye reinforcement provide enhanced control and durability, ideal for weaving delicate or intricate patterns.
Product 14
Code: E-135-NA-380
Thickness: 1.35 mm
Eye Distance: NA
Number of Eyes: 1
Length: 380 mm
Description: This Eins wire heald is crafted for high-density weaving, featuring a 1.35 mm thickness and single eye. The 380 mm length combined with long eye reinforcement ensures maximum strength and stability, making it suitable for demanding weaving projects.
Code: E-135-NA-380
Thickness: 1.35 mm
Eye Distance: NA
Number of Eyes: 1
Length: 380 mm
Description: This Eins wire heald is crafted for high-density weaving, featuring a 1.35 mm thickness and single eye. The 380 mm length combined with long eye reinforcement ensures maximum strength and stability, making it suitable for demanding weaving projects.
